ID.4 dimensions

Here you’ll find all the dimensions for both the exterior and interior of the ID.4. Subsequent trims with differing dimensions are shown individually. Scroll down to find out more.

ID.4 dimensions

The following dimensions shown apply to ID.4 Life, Style, Family and Max trims.

Exterior dimensions

Tiguan side view with boot up

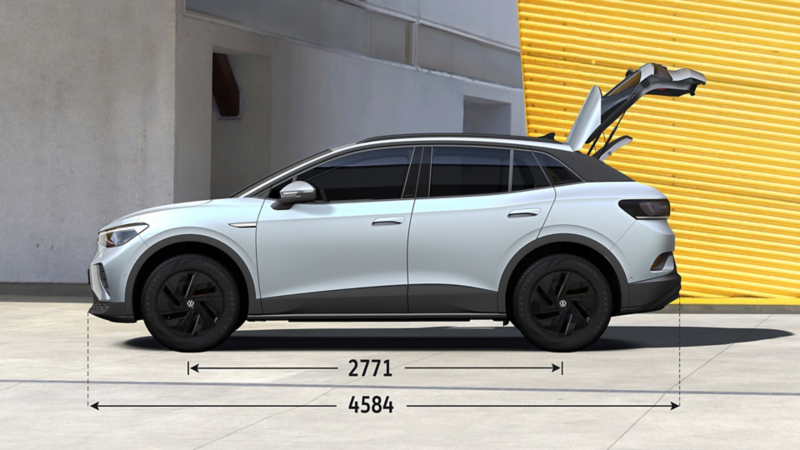

The ID.4’s length and wheelbase dimensions.
An electric car that truly makes an impact
Interior dimensions

mm

Length

4584

Wheelbase

2771

Turning circle

10200

Width - excluding door mirrors

1852

Height

1640

mm

4584

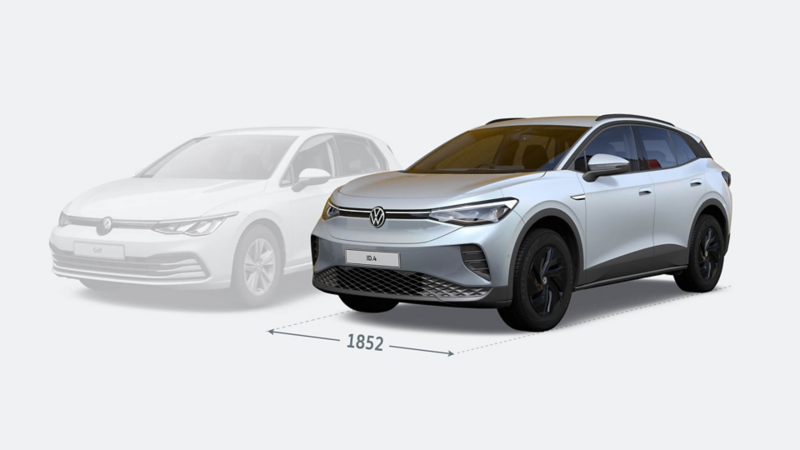

The front width of the ID.4 compared to a Golf.

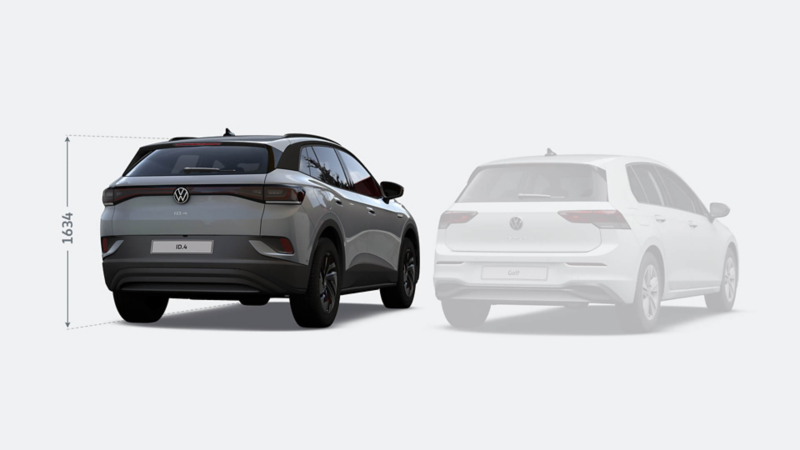

The back height of the ID.4 compared to a Golf.
 Ideal for big adventures

Interior dimensions

Tiguan interior dimensions

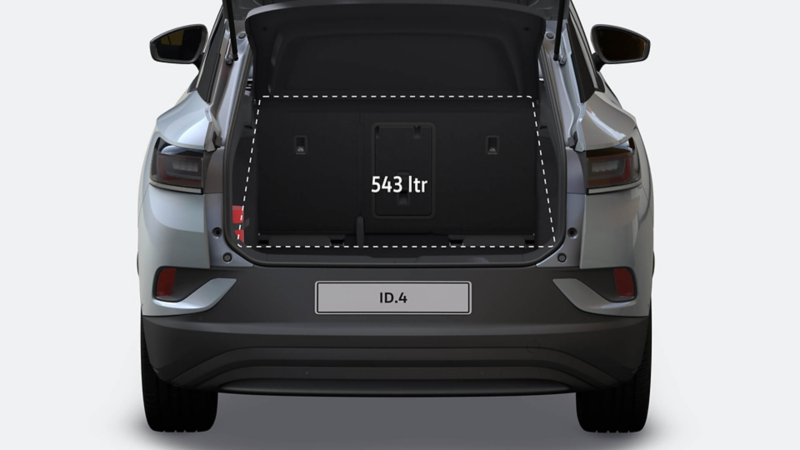

 The ID4’s boot capacity.
Pack more in
Interior dimensions

mm

Interior width - front

1503

Interior width - rear

1494

Boot length, with rear seats upright

965

Boot length, with rear seats folded

1734

Boot volume

543 ltr

Effective headroom maximum - front (with sunroof)

1066

Effective headroom maximum - rear (with sunroof)

979

mm

1503

The boot depth with the rear seats up and down in the ID.4

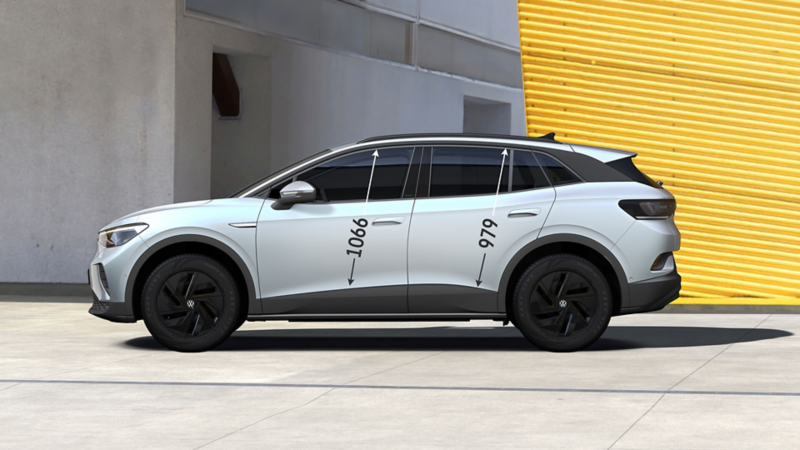

The ID.4’s front and rear door heights.

ID.4 GTX dimensions

Exterior dimensions

Tiguan side view with boot up

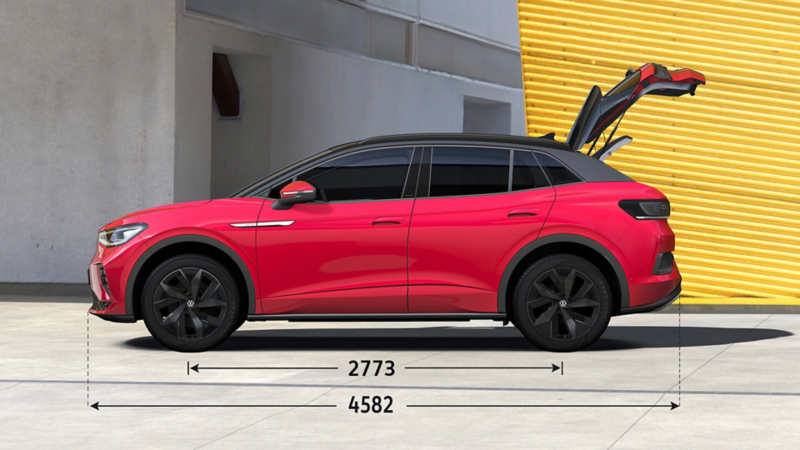

The ID.4 GTX length and wheelbase dimensions.
Presence to match performance
Interior dimensions

mm

Length

4582

Wheelbase

2769

Turning circle

11570

Width - excluding door mirrors

1852

Height

1637

mm

4582

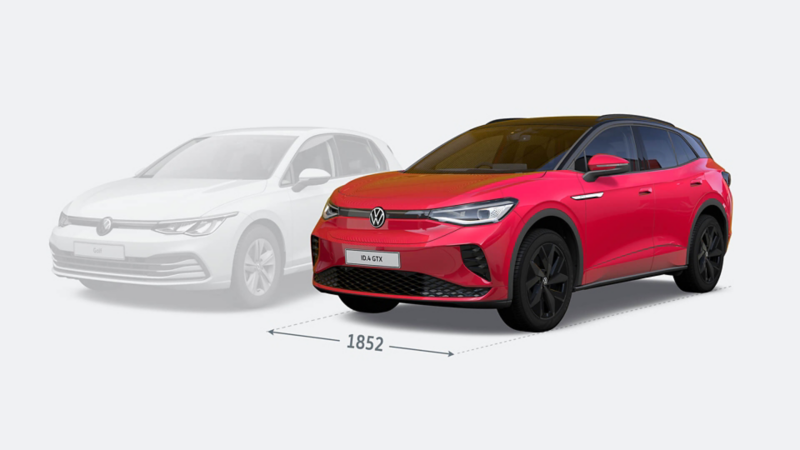

The front width of the ID.4 GTX compared to a Golf.

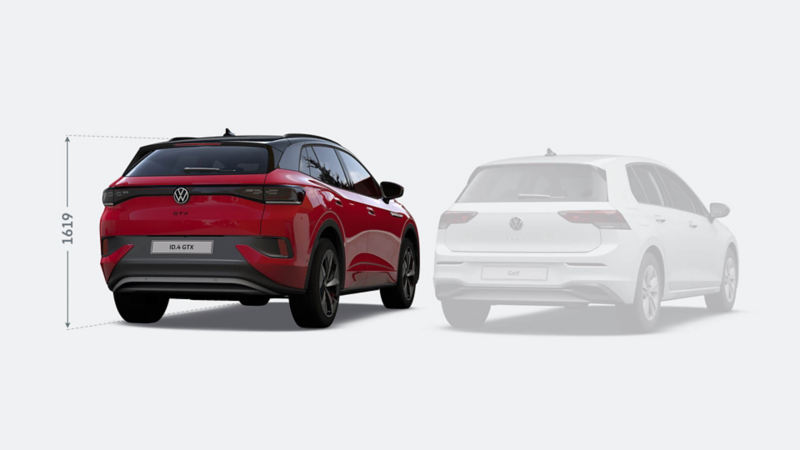

The back height of the ID.4 GTX compared to a Golf.
Ideal for big adventures

Interior dimensions

Tiguan interior dimensions

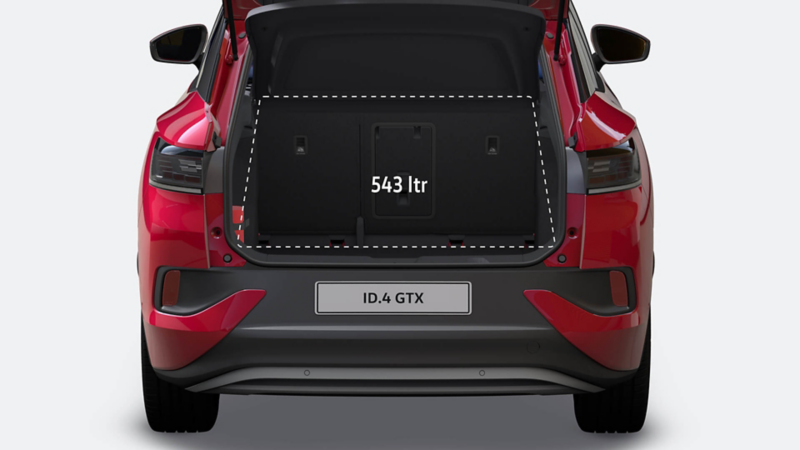

The ID.4 GTX boot capacity.
A boot made for adventures
Interior dimensions

mm

Interior width - front

1503

nterior width - rear

1494

Boot length, with rear seats upright

965

Boot length, with rear seats folded

1734

Boot volume

543 ltr

Effective headroom maximum - front (with sunroof)

1066

Effective headroom maximum - rear (with sunroof)

979

mm

1503

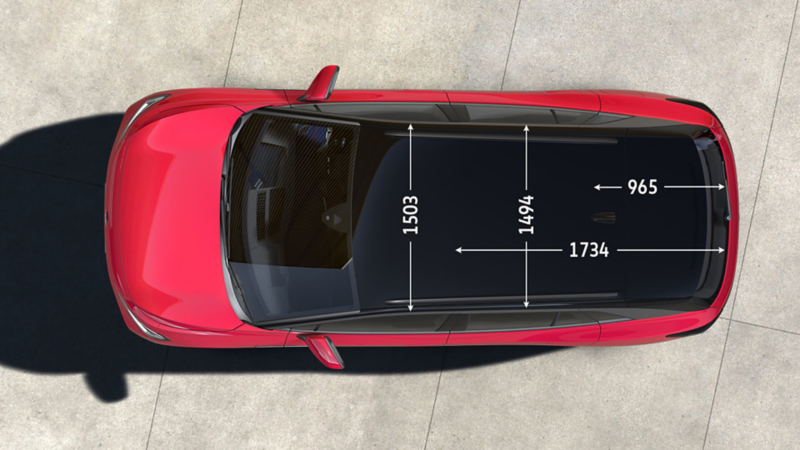

The boot depth with the rear seats up and down in the ID.4 GTX

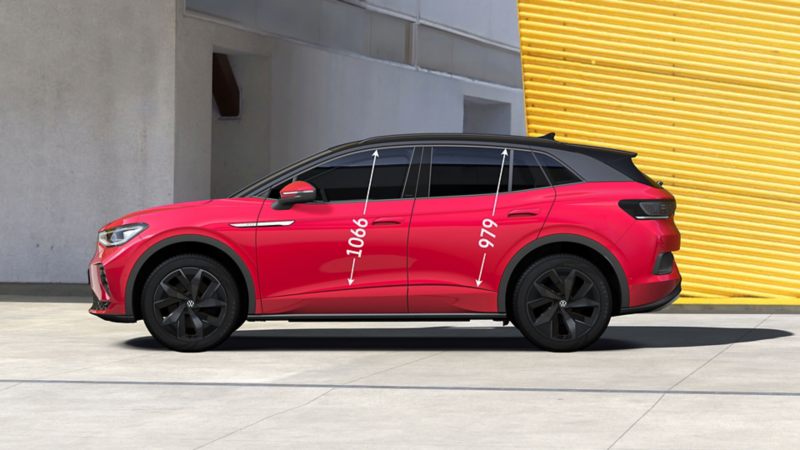

The ID.4 GTX front and rear door heights.

ID.4 GTX Max dimensions

Exterior dimensions

Tiguan side view with boot up
The ID.4 GTX MAX length and wheelbase dimensions.
Size that gives genuine presence
Interior dimensions

mm

Length

4582

Wheelbase

2769

Turning circle

11570

Width - excluding door mirrors

1852

Height

1637

mm

4582

The front width of the ID.4 GTX MAX compared to a Golf.
The back height of the ID.4 GTX MAX compared to a Golf.
Wide wheelbase and generous ground clearance

Interior dimensions

Tiguan interior dimensions
The ID.4 GTX MAX boot capacity.
Enough room for loads big and small
Interior dimensions

mm

Interior width - front

1503

Interior width - rear

1494

Boot length, with rear seats upright

965

Boot length, with rear seats folded

1734

Boot volume

543 ltr

Effective headroom maximum - front (with sunroof)

1066

Effective headroom maximum - rear (with sunroof)

979

mm

1503

The boot depth with the rear seats up and down in the ID.4 GTX MAX
The ID.4 GTX MAX front and rear door heights.
