A grey VW ID.3 Neo driving down a city street

ID.3 Neo dimensions

ID.3 Neo dimensions

Here you’ll find all the dimensions for both the exterior and interior of the ID.3 Neo. Subsequent trims with differing dimensions are shown individually. Scroll down to find out more.

Exterior dimensions

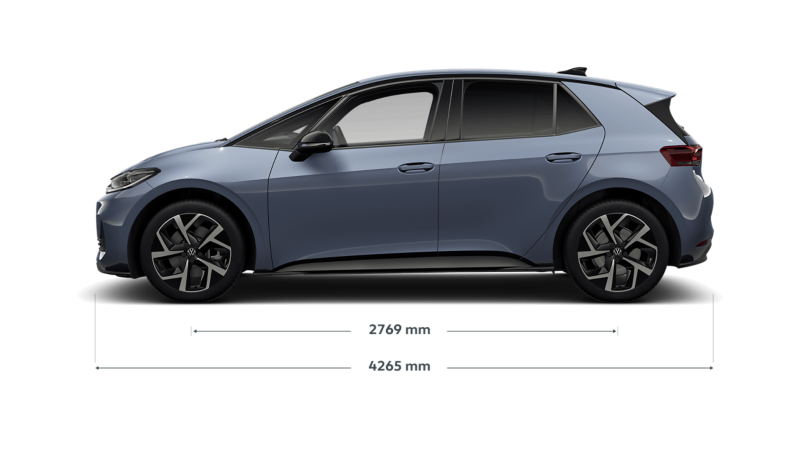

Side view of a grey VW ID.3 Neo with length and wheelbase dimensions displayed
The ID.3 Neo's length and wheelbase dimensions.

1/1

Interior dimensions

mm

Length

4265

Wheelbase

2769

Turning circle

11500

Width - excluding door mirrors

1809

Height

1561

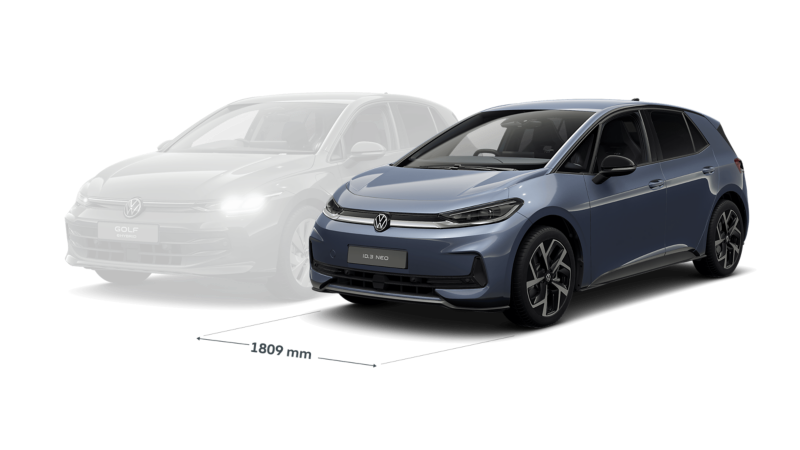

Front three-quarter view of a grey VW ID.3 Neo with the width displayed compared to a Golf.
The front width of the ID.3 Neo compared to a Golf.

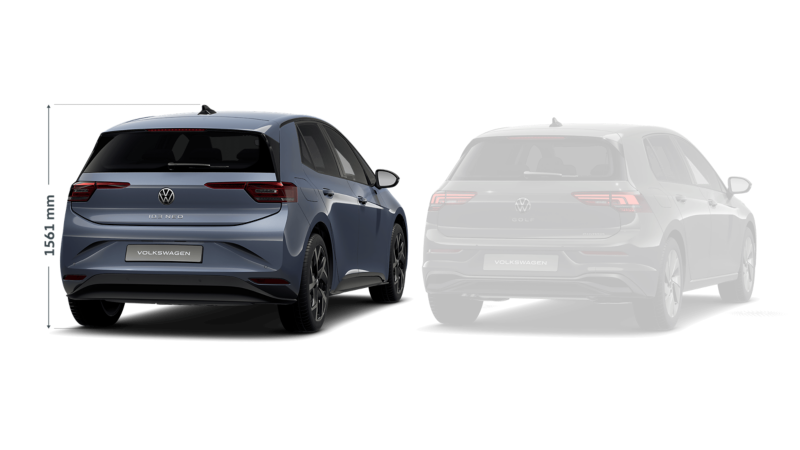

Rear three-quarter view of a grey VW ID.3 Neo with the height displayed
The back height of the ID.3 Neo compared to a Golf.

Interior dimensions

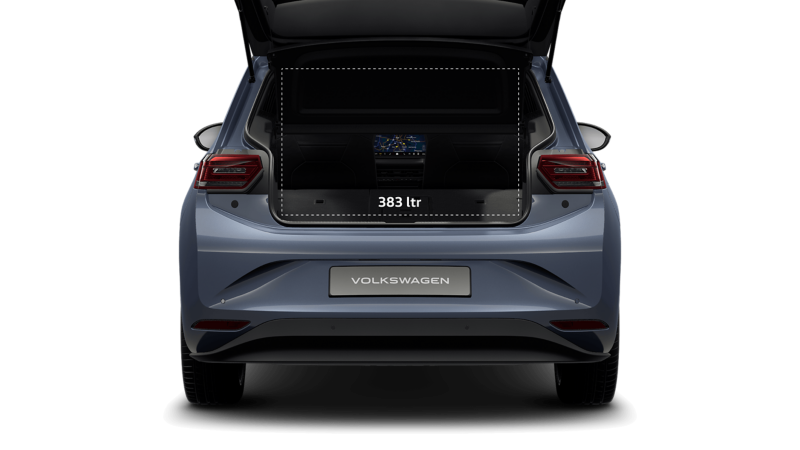

The VW ID.3 Neo's boot capacity
 The ID.3 Neo's boot capacity.

1/1

Interior dimensions

mm

Interior width - front

1464

Interior width - rear

1444

Boot length, with rear seats upright

852

Boot length, with rear seats folded

1635

Boot volume

383 ltr

Effective headroom maximum - front

1024

Effective headroom maximum - rear

956

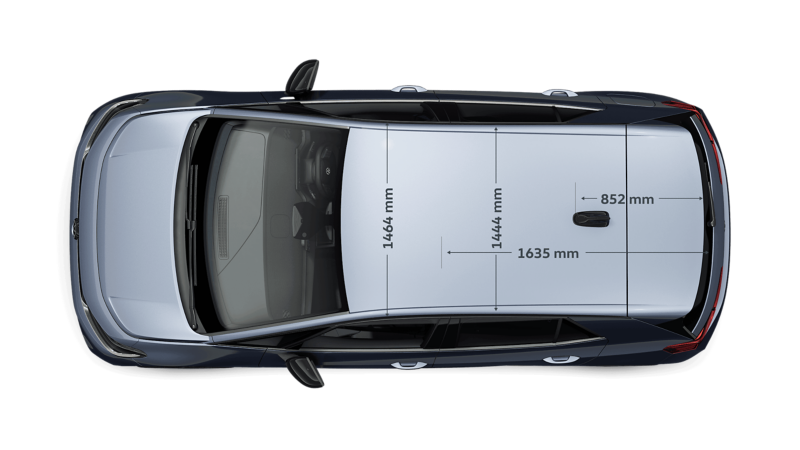

Top view of a VW ID.3 Neo with the boot depth dimensions displayed with the rear seats up and down
The boot depth with the rear seats up and down in the ID.3 Neo.

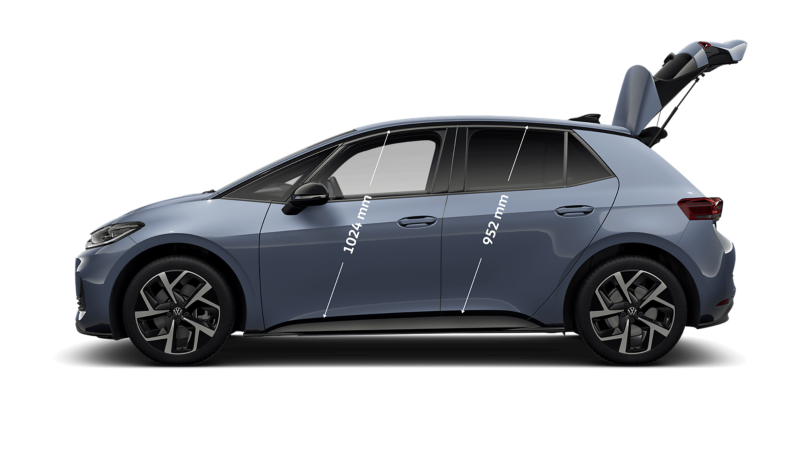

Side view of a VW ID.3 Neo with front and rear door height dimensions displayed
The ID.3 Neo front and rear door heights.
