ID.5 Dimensions

ID.5 dimensions

Here you’ll find all the dimensions for both the exterior and interior of the ID.5. Subsequent trims with differing dimensions are shown individually. Scroll down to find out more.

Exterior dimensions

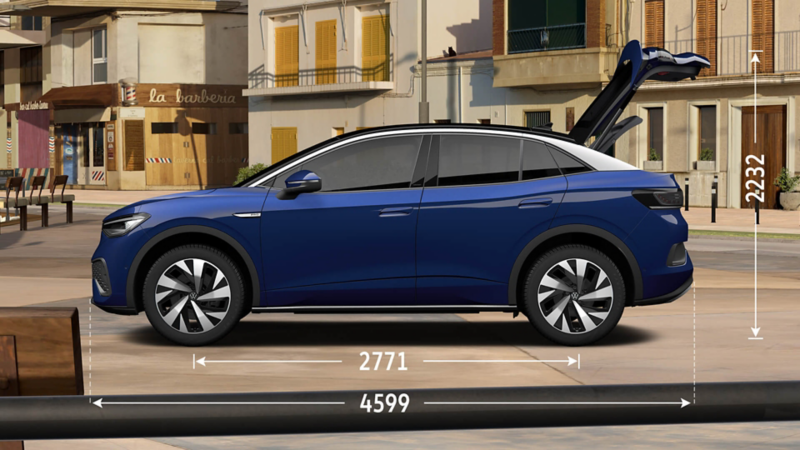

Blue ID.5 with boot open
The ID.5's length and wheelbase dimensions.
Make an impression on the road
Interior dimensions

mm

Length

4599

Wheelbase

2771

Turning circle

10200

Width - excluding door mirrors

1852

Height

1615

mm

4599

ID.5 front comparison with golf

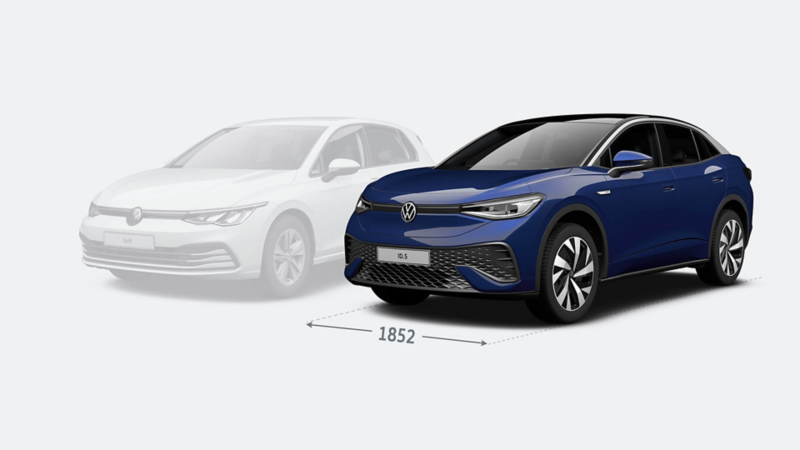

The front width of the ID.5 compared to a Golf.

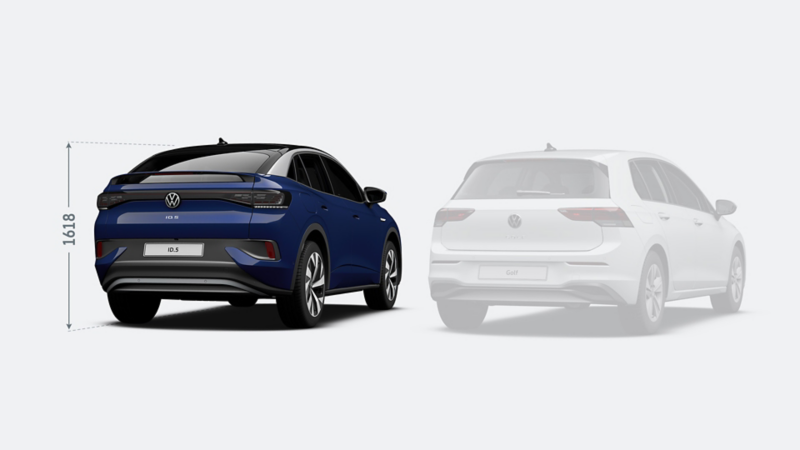

ID.5 rear comparison with golf
The back height of the ID.5 compared to a Golf.
Generously proportioned

Interior dimensions

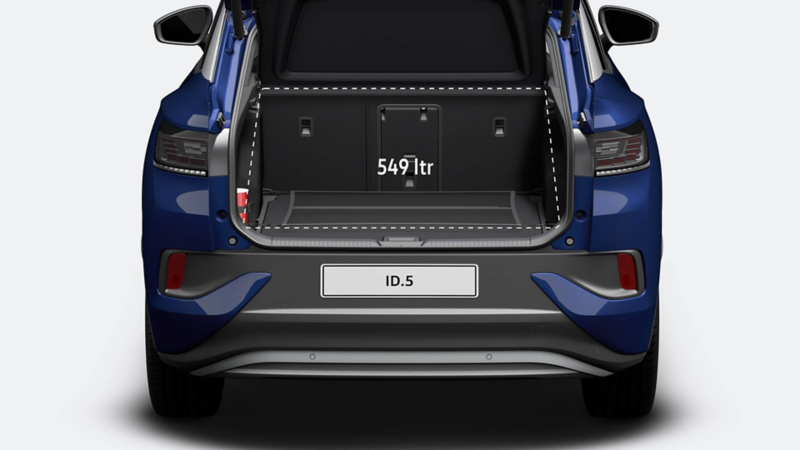

ID.5 rear with boot open
 The ID5’s boot capacity.
Plenty of space to pack
Interior dimensions

mm

Interior width - front

1045

Interior width - rear

1494

Boot length, with rear seats upright

965

Boot length, with rear seats folded

1734

Boot volume

549 ltr

Effective headroom maximum - front (with sunroof)

1045

Effective headroom maximum - rear (with sunroof)

1615

mm

1045

ID.5 interior boot depth

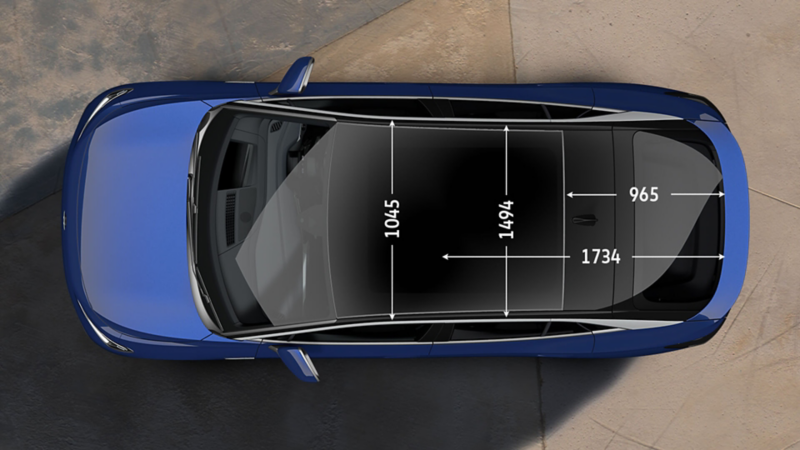

The boot depth with the rear seats up and down in the ID.5

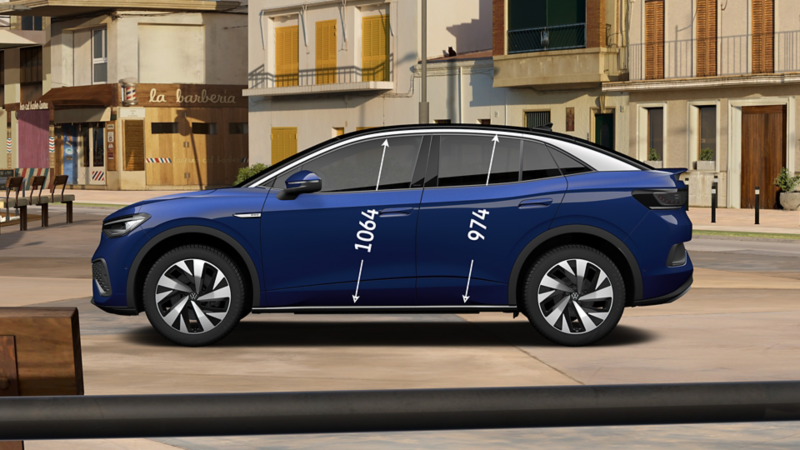

ID.5 rear door heights
The ID.5's front and rear door heights.

ID.5 GTX dimensions

Exterior dimensions

ID.5 gtx with boot open

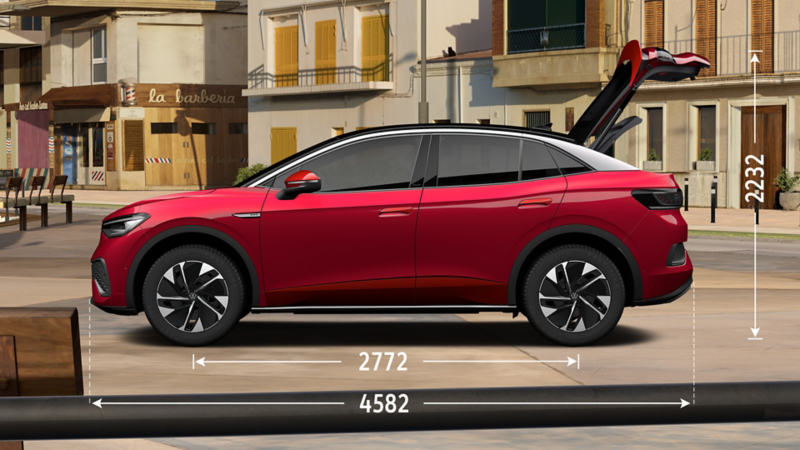

The ID.5 GTX length and wheelbase dimensions.
A sporty profile to match the performance
Interior dimensions

mm

Length

4582

Wheelbase

2771

Turning circle

12000

Width - excluding door mirrors

1852

Height

1615

mm

4582

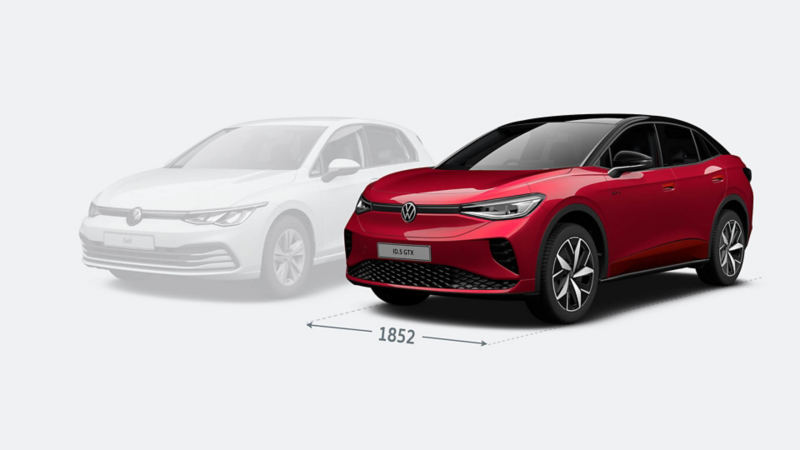

ID.5 gtx and gold comparison front
The front width of the ID.5 GTX compared to a Golf.
ID.5 gtx and gold comparison rear

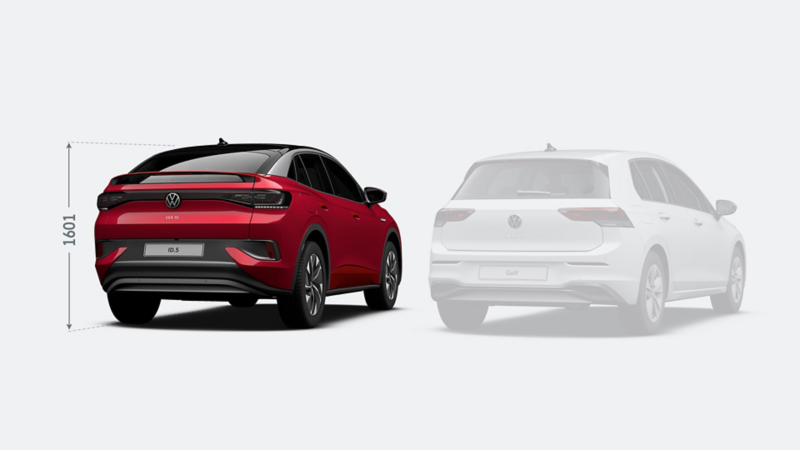

The back height of the ID.5 GTX compared to a Golf.
A wider wheelbase for a comfier ride

Interior dimensions

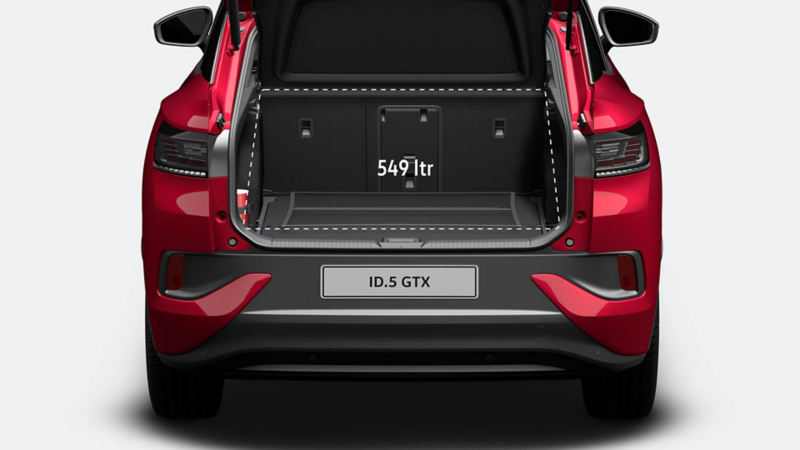

ID.5 gtx interior boot depth
The ID.5 GTX boot capacity.
Designed with built-in space
Interior dimensions

mm

Interior width - front

1045

nterior width - rear

1494

Boot length, with rear seats upright

965

Boot length, with rear seats folded

1734

Boot volume

549 ltr

Effective headroom maximum - front (with sunroof)

1045

Effective headroom maximum - rear (with sunroof)

1615

mm

1045

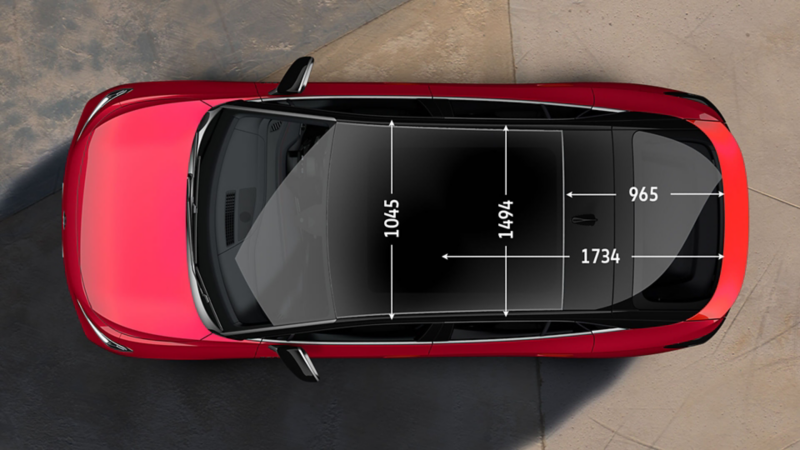

ID.5 gtx boot depth
The boot depth with the rear seats up and down in the ID.5 GTX

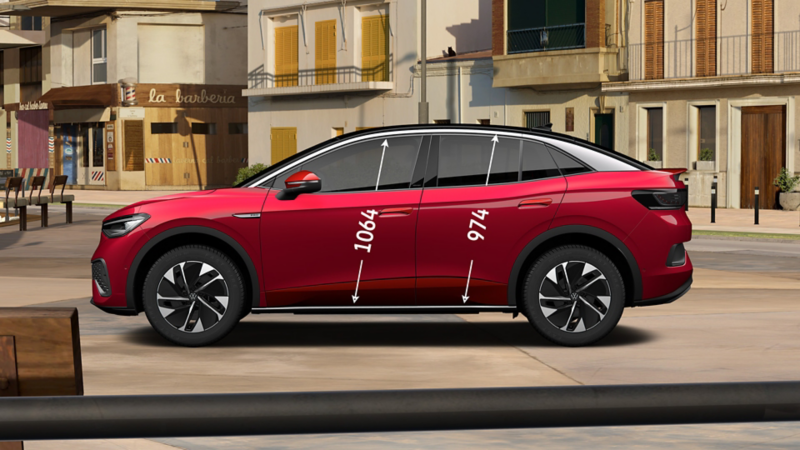

ID.5 gtx rear door heights
The ID.5 GTX front and rear door heights.
